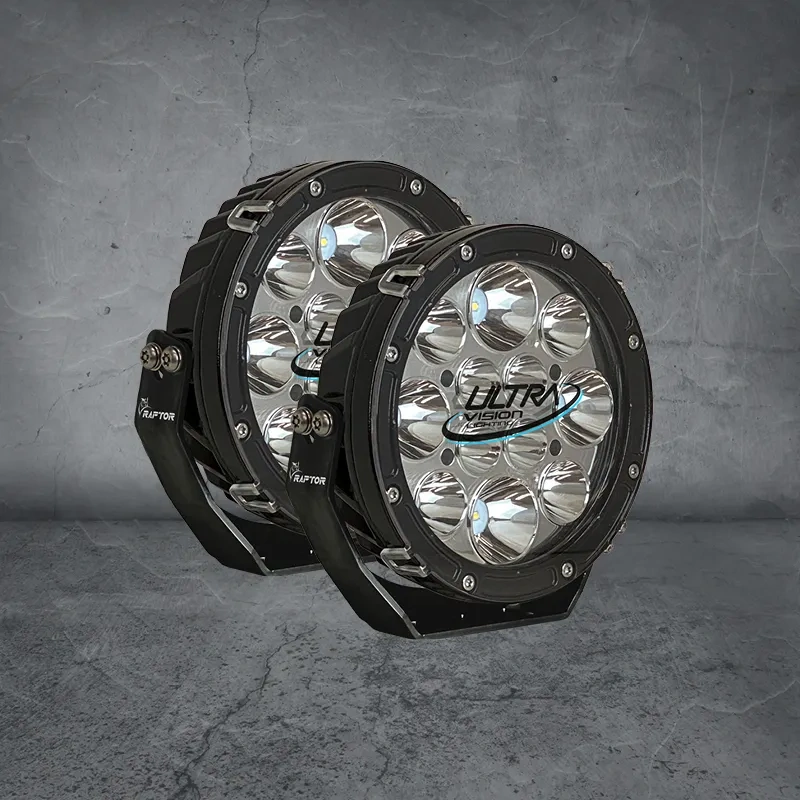

Ultra Vision Raptor 70W LED Driving Lights 5700K RAP070DL
SKU code: RAP070DL
The RAPTOR LED Driving Lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type.
All RAPTOR lamps come complete with a protective lens cover and easy-adjust mounting bracket. To make sure you get the right option for your own driving comfort| the lamps are available with either 4000k or 5700k Colour Temperature.
The lamps come complete with a clear lens cover| wiring harness and stainless steel brackets. All Raptor products are manufactured in Australia and covered by a 3-year warranty| adding total peace of mind.
Beam Patterns
| SPECIFICATIONS | RAPTOR 70W |
|---|---|
| Wattage | 70W |
| Light Source | 12 x 6W |
| Light Output – Raw | 16,400 Lumens/lamp |
| Light Output – Effective | 13,284 Lumens/lamp |
| Voltage | 9-36V |
| Current Draw | 5A @ 13.5V |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |
| Connector Type | 2 Pin standard Deutsch |
| Housing | Die-Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Beam Colour | 4000K or 5700K |
| Lifespan | 50’000 Hours |
| Diameter | 170mm |
| Net Weight | 1.3kg |
| Beams Available | Combo |
| Warranty | 3 Years |
| Hi/Lo Wiring Harness included | Yes |
| PART NUMBERS | |
| Raptor 70 4000K | RAP070DL4 |
| Raptor 70 5700K | RAP070DL |
| SKU | RAP070DL |
| Brand | Ultra Vision |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
