The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance| the Nitro Light Bar takes performance to another level.

Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.

  • The Hi-Beam function utilises all the LEDs in the light bar using 5700k temperature LEDs: Perfect for open road driving.
  • The Lo-Beam function uses only the spread optics with warmer| 4000k LEDs| reducing glare on road signs and fog.

Both side and base mounts are available| ensuring that fitment is simple in any application.

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.


Beam Pattern

NITRO Maxx LED Light bar Vertical illuminance

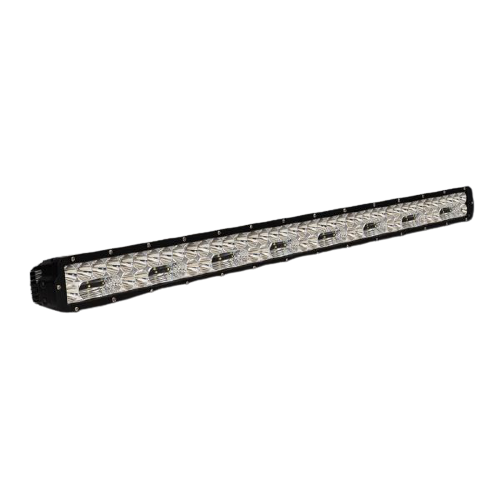

  405W NITRO LIGHT BAR SPECIFICATIONS
Part Number DVM405LEDW4/3
Warranty 5 Years
Beams Available Combo Widr
Mounting Suitable Base and side mount
Net Weight 5.3 kg
Dimensions 1165 x 92 x 84mm
Lifespan 50,000 Hours
Colour 4000K or 5700K
Bracket Stainless Steel and Alloy
Lens Construction Polycarbonate
Housing Extruded Aluminium
Connector Type HD Deutsch
Waterproof Rating IP68
Operating Temp. -40 to 80 Deg C
Current Draw 24A
Voltage 9-36V
Light Output – Effective 26590 Lumens
Light Output – Raw 36960 Lumens
Light Source 60 x 5w LEDs
Wattage

300

SKU DVM405LEDW43
Brand Ultra Vision
Shipping Weight 6.0000kg
Shipping Width 0.600m
Shipping Height 0.100m
Shipping Length 0.100m
