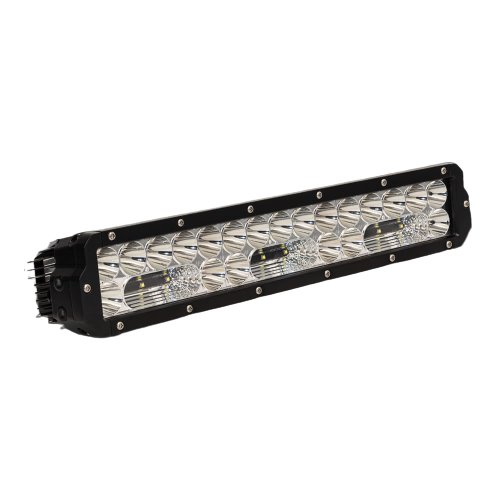

The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance| the Nitro Light Bar takes performance to another level.

Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.

  • The Hi-Beam function utilises all the LEDs in the light bar using 5700k temperature LEDs: Perfect for open road driving.
  • The Lo-Beam function uses only the spread optics with warmer| 4000k LEDs| reducing glare on road signs and fog.

Both side and base mounts are available| ensuring that fitment is simple in any application.

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.

Beam Patterns

  155W NITRO LIGHT BAR SPECIFICATIONS
Wattage 155
Light Source 30 x 5w LEDs
Light Output – Raw 18480 Lumens
Light Output – Effective 13295 Lumens
Voltage 9-36V
Current Draw 12A
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP68
Connector Type HD Deutsch
Housing Extruded Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel and Alloy
Colour 4000K or 5700K
Lifespan 50,000 Hours
Dimensions 465 x 92 x 84mm
Net Weight 2.5 kg
Mounting Suitable Base and side mount
Beams Available Combo Widr
Warranty 5 Years
Part Number DVM155LEDW
Outer Lens Cover Included Free Yes
SKU DVM155LEDW
Brand Ultra Vision
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.100m
