Numerous factors combine together to make a good driving light.  Needless to say| to make an exceptional driving light| all these factors have to be… exceptional.  The Nitro 140 Maxx has done just this!

The body has been designed to reduce depth and weight| so as to increase fitment options.  The lenses are made from hardened polycarbonate and the bracket from 4mm stainless steel.  However| from the drivers’ perspective| the real science is the combination of the LED’s and the optics.

The sophisticated Contrl® optics condense the light by reducing non-functional stray beams.  Coupled with a high-efficiency Luxeon LED they produce a performance that is unmatched internationally.

Combination and Widr® beam patterns are available delivering up to 1 Lux at 1.2km.


Beam Patterns

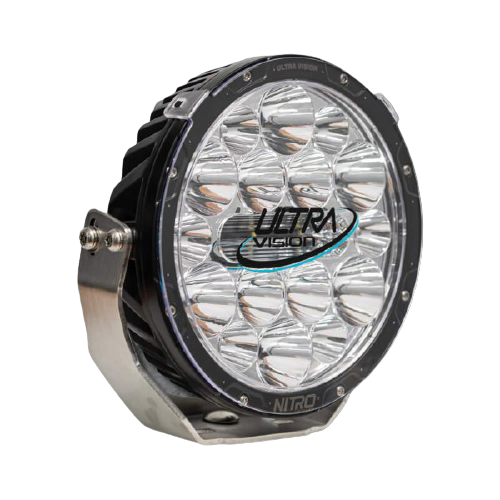

SPECIFICATIONS NITRO 140 MAXX
Wattage 140W
Light Source 6W Luxeon LED’s
Light Output – Raw 14600 Lumens/lamp
Light Output – Effective 11615 Lumens/lamp
Voltage 9V-36V
Current Draw 9.6A @ 13.5V
Operating Temperature -40°C to +80°C
Waterproof rating IP68
Connector Type Deutsch DT 2 Pin
Housing Die Cast aluminium
Lens Construction Polycarbonate
Bracket 4mm Stainless Steel
Beam Colour 4000K or 5700K
Lifespan 50’000 Hours
Diameter 230mm
Net Weight 2.95kg
Beams Available Combo and Widr® Beam
Warranty 5 Years
Harness and anti-theft nuts included Yes
Outer Lens Cover Included Free Yes
Product Registration Number 201711542
PART NUMBERS
Combo Beam PVM2314LEDC
Widr® Beam PVM2314LEDW
SKU PVM2314LEDW
Brand Ultra Vision
Shipping Weight 5.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
