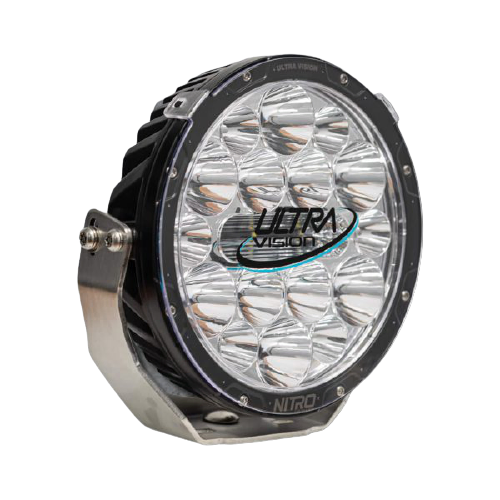

Ultra Vision NITRO 140 Maxx LED Driving Light Combo Beam PVM2314LEDC
SKU code: PVM2314LEDC
Numerous factors combine together to make a good driving light. Needless to say| to make an exceptional driving light| all these factors have to be… exceptional. The Nitro 140 Maxx has done just this!
The body has been designed to reduce depth and weight| so as to increase fitment options. The lenses are made from hardened polycarbonate and the bracket from 4mm stainless steel. However| from the drivers’ perspective| the real science is the combination of the LED’s and the optics.
The sophisticated Contrl® optics condense the light by reducing non-functional stray beams. Coupled with a high-efficiency Luxeon LED they produce a performance that is unmatched internationally.
Combination and Widr® beam patterns are available delivering up to 1 Lux at 1.2km.
| SPECIFICATIONS | NITRO 140 MAXX |
|---|---|
| Wattage | 140W |
| Light Source | 6W Luxeon LED’s |
| Light Output – Raw | 14600 Lumens/lamp |
| Light Output – Effective | 11615 Lumens/lamp |
| Voltage | 9V-36V |
| Current Draw | 9.6A @ 13.5V |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |
| Connector Type | Deutsch DT 2 Pin |
| Housing | Die Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | 4mm Stainless Steel |
| Beam Colour | 4000K or 5700K |
| Lifespan | 50’000 Hours |
| Diameter | 230mm |
| Net Weight | 2.95kg |
| Beams Available | Combo and Widr® Beam |
| Warranty | 5 Years |
| Harness and anti-theft nuts included | Yes |
| Outer Lens Cover Included Free | Yes |
| Product Registration Number | 201711542 |
| PART NUMBERS | |
| Combo Beam | PVM2314LEDC |
| Widr® Beam | PVM2314LEDW |
| SKU | PVM2314LEDC |
| Brand | Ultra Vision |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.300m |
| Shipping Length | 0.300m |
