Part Number: EVC612

Supported Vehicles:

Mazda 3 2010-2013(BL)| Mazda BIANTE 2008-2012|

Volvo V40 2012-2019| Volvo V40 2013-ON(CrossCountry)| Volvo XC60 2017-ON(2ndGen)| Volvo XC90 2015-ON(2ndGen)

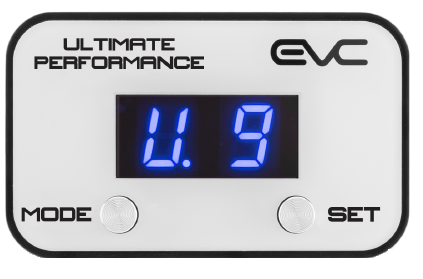

Feel the power and UNLEASH the full potential of your vehicle with the EVC Throttle Controller.

Featuring 4 driving modes and 20 tuning settings| adjust your throttle response to suit your specific needs. Easily installed in under 15 minutes| the EVC is the DIY mechanic's solution to throttle lag; customisable for any driving terrain or situation| whether you're on the highway or off the beaten track.

The EVC provides new points of reference for your vehicle's throttle mapping| modifying the torque request that is sent to the throttle tables in your vehicle's Engine Control Unit (ECU). As a result| the throttle is activated faster| ultimately reducing throttle lag and enhancing throttle response.

Modes:

• Factory Mode: Replicates factory throttle settings| ideal for sharing your vehicle with an unfamiliar driver
• Ultimate Mode: For enhanced response| choose from 9 available settings to fine-tune your throttle response. Great for towing| overtaking or highway driving
• Economy Mode: Subdues initial throttle response for greater control on loose or uneven surfaces such as when off-road. Choose from 9 available settings. Great for off-road| heavy traffic and low-speed towing manoeuvres.
• Automatic Mode: Sets the EVC apart from other throttle controllers. A.C. automatically chooses an Ultimate Mode throttle response based on the amount of pedal pressure. Great for long drives or when towing over varying terrains.

Why Ultimate9

Rather than a traditional accelerator cable| many modern vehicles use 'fly by wire' throttle technology. This system relies on a sensor that measures the pedal pressure and position and sends a signal to the vehicle's engine computer which converts to acceleration. Many of these fly by wire systems have a noticeable delay. Ultimate9 allows you to tune the signal from the accelerator pedal with multiple inbuilt settings to ensure you find a setting that suits your driving style| although there are other products on the market that can offer this performance.

So what makes Ultimate9 different?

Ultimate9 includes an automatic control function that changes the level of throttle performance based on pedal pressure. So if you are in traffic and accelerating gently the Ultimate9 will select setting 1. If you are accelerating hard to overtake| towing a heavy trailer| or just having fun the Ultimate9 will select 9. The result is the smoothest aftermarket control module on the market. We are so confident you will love your Ultimate9 if you don't we will give you your money back.

How To Install

Turn ignition off.

Unplug the connector plugged into the accelerator pedal assembly.

Plug the Ultimate9 connector into the vehicle’s accelerator pedal. Be cautious not to force into position as this may result in bent pins in the plug. Ultimate9 connector should fit easily into position. Although removing the accelerator pedal from the firewall is not required| it may make access to the plug easier.

Re-fit connector into the Ultimate9.

Using cable ties supplied| securely mount the Ultimate9 cable in a position that will not affect the operation of the pedals.

Mount the control module on the dash in a position that is easy to access. You may want to check the position at night to ensure the display doesn’t affect night driving.
