Included Accessories: 1x inflatable float seat| manual pump & gauge| repair kit| oars| 2 x carry bags| spare valve| 5 year fabric warranty| 3 year construction warranty.

Takacat’s large diameter tubes do not effect the boats performance like they can on a conventional mono-hull inflatable. In fact the large tubes enhance the performance of the low resistance catamaran hull designs to provide quick and level planning| exceptional stability and fuel economy.

Standard Accessories: Inflatable seat| manual pump| pressure gauge| oars| repair kit| 2 x carry bags.

Prices include GST and Freight.

Outboard Motor Sizing Info

260S – 8hp| up to 26kgs

300S – 10hp| up to 38kgs

340S – 15hp| up to 38kgs

380S – 20hp| up to 45kgs

short shaft length of approximately 15″

Construction

  • Tubes: Tough 0.9mm| 1000 denier custom made PVC| inflate to 3psi. Anti-UV grade tested to 4-5 out of 5. International Standards ISO 4892-3:2006
  • Air deck floor: 100mm thick| 0.8mm walls| intertwined polyester fibre| 1000 denier. Plus 1mm custom made anti-skid (PVC with anti-UV addative). A fabric to fabric bonding top layer for ultimate durability| inflate to 10psi.
  • Easy re-tubing: Unlike conventional ribs or inflatable boats Takacats can be re-tubed simply and cost effectively due to our revolutionary tube transom (R). Our fully removable high-pressure air deck floor system. The tubes are not glued to a hull or transom so there is no hassle or costly process to have your aged of damaged tubes re made and re glued to the hull. You can simply order a set of new tubes direct from Takacat.
  • Built to International Standard ISO/6185

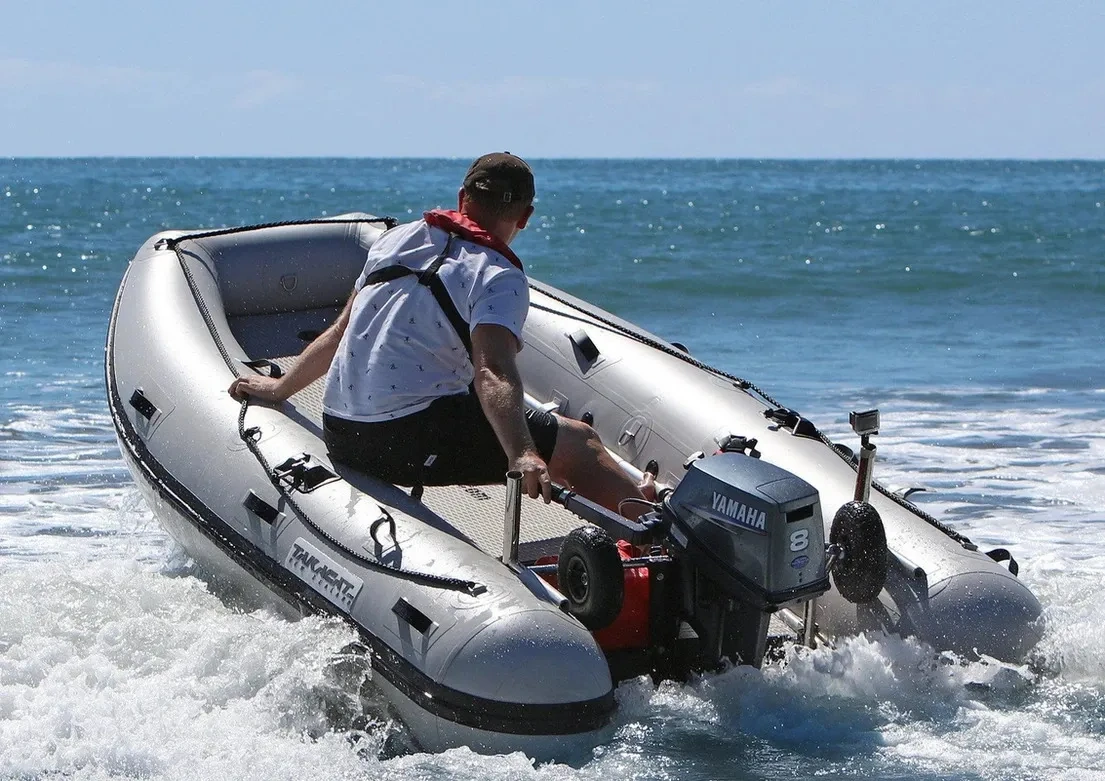

The unique tapered & closed in bow design of the Takacat Sport inflatable boat provides more traditional lines than the Takacat LX Series but still utilises the same catamaran hull configuration and features. The ideal inflatable boat tender providing a dry and stable platform with the Takacat element of practicality and enjoyment.

  • Unique tapered bow design for a dry ride

  • Portable (Rolls up to fit in a bag)

  • Bag to water in minutes

  • Exceptional stability on the water

  • Light weight (from 26kg / 2.6m)

  • Large 0.48m diameter tubes

  • Available in three convenient sizes 2.6m| 3m| and 3.4m

  • Quick & easy set-up / pack down

  • Suitable for outboard engines 2.5hp to 15hp

  • Easy to row

  • Tracks well under tow

  • Quick drain transom design

  • Heavy-duty under tube rubber protection

  • Quick release wheel option

Specifications apply to PVC versions and are subject to change without notice. All dimensions and weight measurements have a tolerance of plus/minus 2-8%.



All Takacat catamaran inflatables from a length of 2.5m have a CE certificate and are manufactured according to ISO 6185-2. All joints are glued with a quality adhesive| which keeps the material supple| an advantage for folding inflatables. Because of the UV radiation in New Zealand and Australia| the Takacats are equipped with a strong UV-protector => anti-UV degree tested to 4-5 of 5 - ISO 4892-3:2006.



Airdeck Floor

Air deck floor is made from reinforced drop stich to provide a high- tensile rigid core. Inflate to 10psi. Custom made protective anti-skid with additional anti-UV additive| high-pressure laminated heat pressed to top layer for the best durability and rigidity. Second-layer side rail tape making 1.8mm walls and additional air tightness.

Heavy Duty Tube Enhancements

"Heavy duty" tube reinforcements protect the tubes| which together with our unique design enables landing almost anywhere. You will find full length rubber protection running parallel the length of the under tubes. Additional side rubbing / protective strips on the sides of the tubes as well as across the bow. The shallow draft of your Takacat allows you to maneuver in shallow waters and get higher up the beach where V bottoms are generally stuck out further in knee deep water.

Tube and Tube Protection

Tough 0.9mm| 1000 denier custom made PVC| inflate to 3psi. Anti-UV grade tested to 4-5 out of 5. International Standards ISO 4892-3:2006

Additional Tube Protection

  • heavy duty under tube rubber protection provides added security when beaching

  • Additional protective layers over each of the single parallel seams running the length of the tubes provides additional strength as well as side protection in this hard hitting area

  • Custom made anti skid tube protection provides a hard wearing floor with a fabric to fabric bonding



Seams

  • Up to 50% less seam work than a standard inflatable boats of similar size

  • Most inflatable boats require the transom| floor| air decks / drop stich| fittings and fixtures to be glued onto the tubes. So when it comes to the seams we have chosen to use our tried and tested gluing system that we also use through out the rest of the boat. This is ideal for roll-up / portable boats where welded seams can become brittle over time and prone to splitting.

Revolutionary Transom Design

Takacats revolutionary and innovative new open Tube-Transom design (R) can be simply and fully  removed from the inflatable tubes for easy deflated. This enables the Takacat to rolled-up smaller| easier and lighter than traditional inflatable boats. These are big advantage when it comes to handling| transportation and or storage.  Ideal for the caravan| motor home and foldaway tender markets. A conventional fixed transom on similar sized Inflatables adds around 7kg + increases the bulk dramatically when packing away.

Length  3.8m
Width  1.65m
Tube Diameter  0.48m
Recommended HP  8-15HP
Max HP  20HP
Capacity  6 people or 640kg
Tube Diameter  1.20m x ∅ 0.35m
Tubes Weight  29kg
Floor Weight  10kg
Transom Weight  6kg
Total Weight  45kg
Storage Bag - Tubes  90 x 60 x 40cm
Storage Bag - Accessories  100 x 40 x 30cm
SKU T380S
Brand TAKACAT
Shipping Weight 45.0000kg
Shipping Width 1.000m
Shipping Height 0.700m
Shipping Length 0.600m
