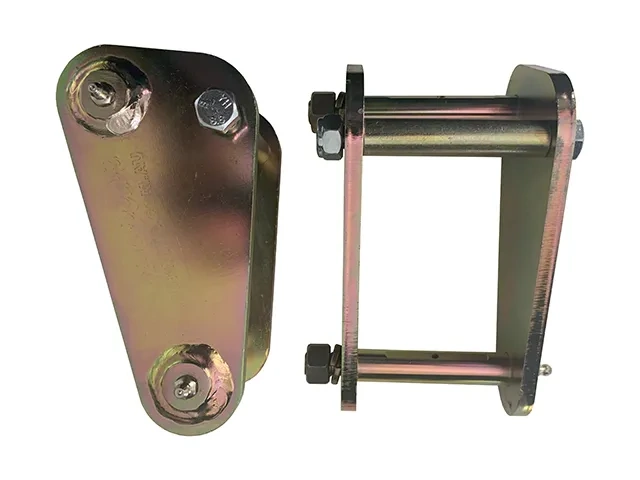

These Superior Anti-Inversion Extended shackles are made with 18mm pins for the front of the 40/45 Series Toyota LandCruiser 8/80-4/86 models.

Superior Engineering is the only company that utilises a welded pin design to stop the pins from working loose and wearing the shackle plates.

They feature an anti-inversion design to stop the springs being damaged when the shackles are hit into obstacles.

Greasable pins to ensure a comfortable ride that also accept standard bushes and manufactured 2 inches over standard.

NOTE: 3-degree caster wedges should also be purchased and fitted in the front when using Extended shackles.

Sold as a pair.

Video Transcription

Hi| I am Mick from Superior Engineering.

Today I want to show you our new seventy-six series extended shackles.

There is a few great things about these shackles| one is we use ten-millimetre steel.

Standard shackles are only six-millimetre steel| so these are a lot stronger and they really have to be because we are going extended| so they're about two inches longer than factory.

We do an SA5 zinc coating on them| so you can go to the beach or where ever you want to go and they're not going to go rust on you.

We use high tensile eighteen-millimetre pins here so they will take the standard bushes.

Grease nipples we have| so obviously your suspension moves nice and smoothly.

In the back of it| there is an anti-inversion bolt.

Now that bolt there is to actually stop your suspension travelling too far if you back your vehicle upon say a LandCruiser and hit a stump or something there is the opportunity your shackle will go too far and bend your springs.

That will actually stop that happening.
