FINALLY| A WORTHY 7" LED HEADLAMP

You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo park light| the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).

PERFORMANCE THAT SURPASSES THE VERY BEST

The low beam is full of volume and throws out to 141m at 1 Lux (Per Headlight). The high beam throws out to 235m at the 1 Lux (Per Headlight) which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer daytime safety. Anti-Flicker technology for an effortless install.

THE NITTY GRITTY.

STEDI 7 Inch Iris Chrome LED Headlight Pair

Our IRIS 7 Inch LED Driving Lights should be the first step when improving your motorcycle's light output. Complete with High and Low beams as well as a full LED halo ring park light| the IRIS 7"  is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry
  • H4 Adaptor
  • High Beam 1 Lux @ 235m (Per Headlight)
  • Low Beam 1 Lux @ 141m (Per Headlight)

PERFORMANCE BUILD QUALITY

  • Anodized Polyester Powdercoat
  • Lexan Polycarbonate (PC) Lens refractor

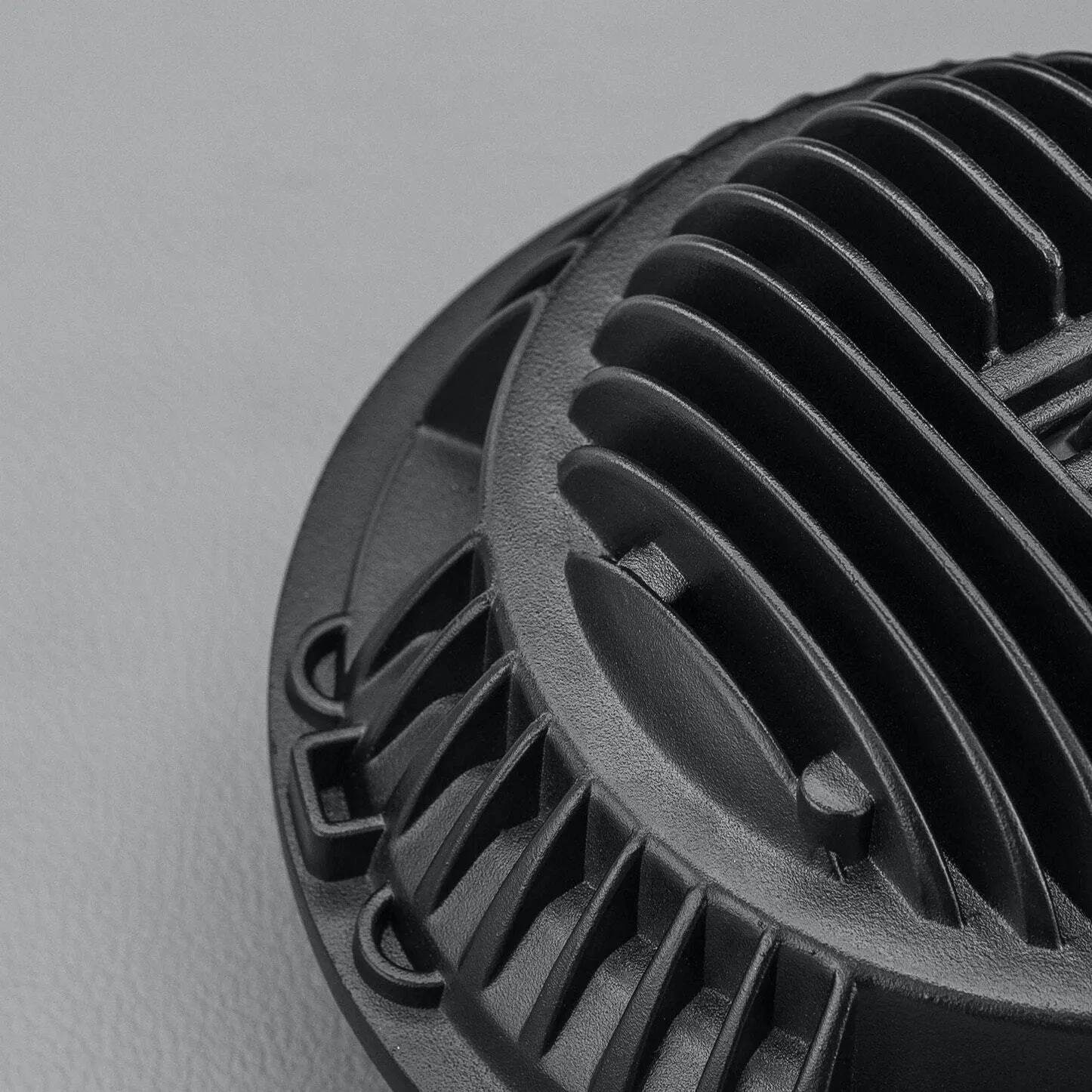

  • Die-cast aluminium alloy (ADC12) Heat-Sink
  • IP67 | Ingress Protection
  • Shock Proof| Waterproof| and UV Shielded
  • Protected against Reverse Polarity and Voltage / Current surges
  • Warranty | 2 Years

COMPATIBLE MODELS:

  • 1955-1983 Jeep CJ-5
  • 1976-1986 Jeep CJ-7
  • 1981-1985 Jeep CJ-8
  • 1997-2006 Jeep Wrangler (TJ)
  • 2007-2015 Jeep Wrangler 2-Door (JK)
  • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 1982 - 1991 Mitsubishi Pajero (L040)
  • Land Rover Defender
  • 70 Series Toyota Landcruiser with a round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • 60 Series Toyota Landcruiser with a round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
  • GQ Patrol
  • Harley Davidson Motorcycles
  • Mercedes Benz G Wagon
  • Kenworth Trucks with 7 inch round headlight

TECH SPECS

LED (Per Headlight) High Beam: 2x 10w XML-2 LED
Low Beam: 2x 15w LED
Park Light: 30x 1.5w Osram
RAW LUMENS (Per Headlight) High Beam: 2000Lm
Low Beam: 1400Lm
Park Light: 150Lm
AMP DRAW (Per Headlight) High Beam: 2.4a @ 13.6v
Low Beam: 1.6a @ 13.6v
Park Light: 0.2a @ 13.6v
LIFESPAN 50|000 Hours
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -30°C~+60°C
LENS MATERIAL LEXAN Polycarbonate
COLOUR TEMP 5700K
VOLTAGE COMPATIBILITY 12v & 24v
PEAK BEAM DISTANCE @ 1 LUX (Per Headlight) High Beam: 235m
Low Beam: 141m
Park Light: 8m
WEIGHT (each) 1.140kg each
DROP IN REPLACEMENT FOR #6014| 6015| 6016| H6024 and Par 56 headlamp designs
ADR COMPLIANCE ADR 46/00
ADR 49/00



WHAT'S INCLUDED

  • 2 x 7-inch STEDI IRIS LED Headlight



SKU LEDMOTO-IRIS-7-PAIR
Brand STEDI
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
