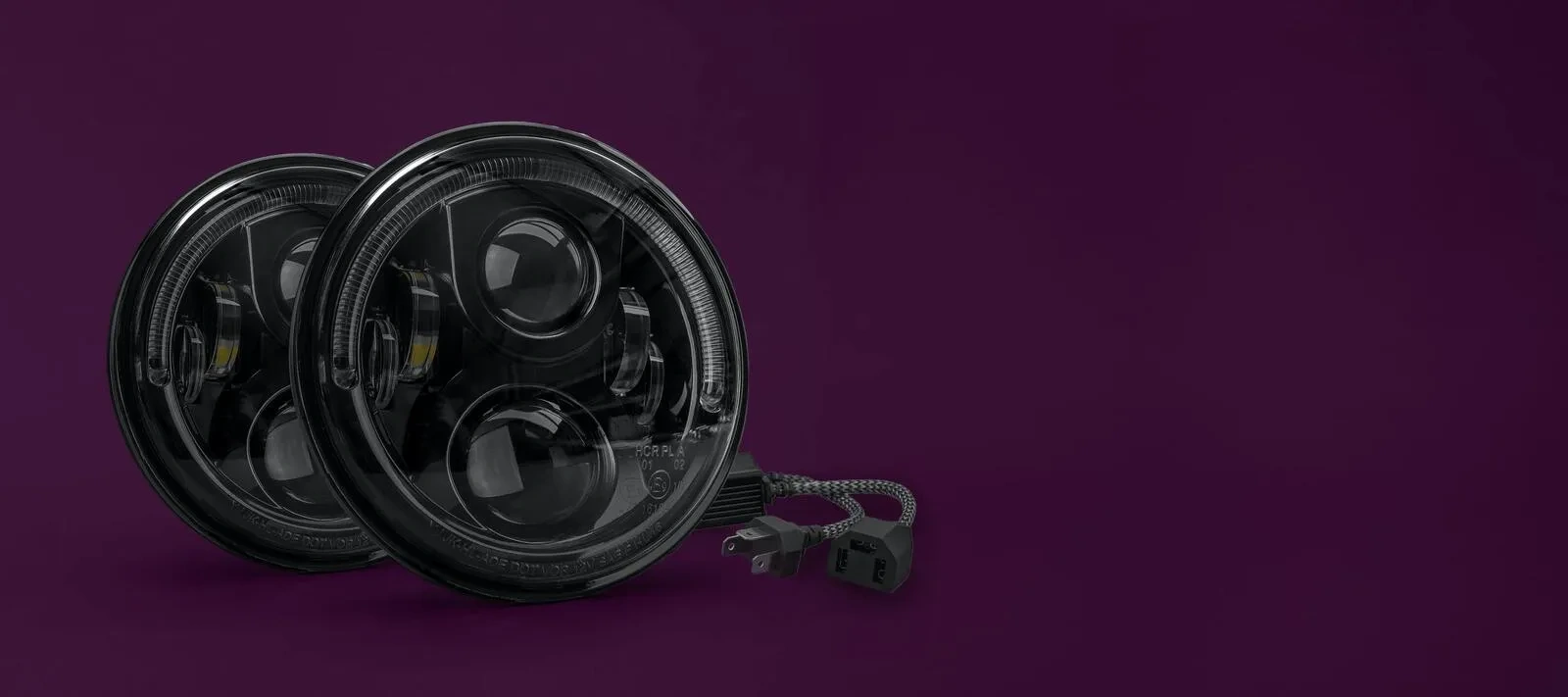

FINALLY| A WORTHY 7" LED HEADLAMP.

You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a half halo park light| the CARBON is your all-in-one upgrade solution for your Toyota Landcruiser.

PERFORMANCE THAT SURPASSES THE VERY BEST.

The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.

ADR COMPLIANT.

The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights| from the get-go you're all set.



THE NITTY
GRITTY.

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light| the CARBON 7"  is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry
  • H4 Adaptor
  • High Beam 1 Lux @ 235m
  • Low Beam 1 Lux @ 141m

PERFORMANCE BUILD QUALITY

  • Anodized Polyester Powdercoat
  • Lexan Polycarbonate (PC) Lens refractor
  • Die-cast aluminium alloy (ADC12) Heat-Sink
  • IP67 | Ingress Protection
  • Shock Proof| Waterproof and UV Shielded
  • Protected against Reverse Polarity and Voltage / Current surges
  • Warranty | 2 Years

COMPATIBLE MODELS:

  • 1955-1983 Jeep CJ-5
  • 1976-1986 Jeep CJ-7
  • 1981-1985 Jeep CJ-8
  • 1997-2006 Jeep Wrangler (TJ)
  • 2007-2015 Jeep Wrangler 2-Door (JK)
  • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 1982 - 1991 Mitsubishi Pajero (L040)
  • Land Rover Defender
  • 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
  • GQ Patrol
  • Harley Davidson Motorcycles
  • Mercedes Benz G Wagon
  • Kenworth Trucks with 7 inch round headlight



TECH SPECS

LED (Per Headlight) High Beam: 2x 10w XML-2 LED
Low Beam: 2x 15w LED
Park Light: 20x 1.5w Osram
RAW LUMENS (Per Headlight) High Beam: 1800Lm
Low Beam: 1250Lm
Park Light: 150Lm
AMP DRAW (Per Headlight) High Beam: 2.4a @ 13.6v
Low Beam: 1.6a @ 13.6v
Park Light: 0.2a @ 13.6v
LIFESPAN 50|000 Hours
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -30°C~+60°C
LENS MATERIAL LEXAN Polycarbonate
COLOUR TEMP 5700K
VOLTAGE COMPATIBILITY 12v & 24v
PEAK BEAM DISTANCE @ 1 LUX (Per Headlight) High Beam: 235m
Low Beam: 141m
Park Light: 8m
WEIGHT (each) 1.140kg each
DROP-IN REPLACEMENT FOR

#6014| 6015| 6016| H6024 and Par 56 headlamp designs
ADR COMPLIANCE

ADR 46/00

ADR 49/00

H4 Cancellation Module:

CONNECTOR TYPE H4
COMPATIBILITY 12v ONLY
SKU LEDMOTO-CARBON-7-PAIR-LC
Brand STEDI
Shipping Weight 2.5000kg
Shipping Width 0.200m
Shipping Height 0.250m
Shipping Length 0.200m
