LUMINANCE WITHOUT COMPROMISE.

STEDI has| yet again| endeavored to prove that halogens fall short compared to the brilliance of our LED upgrades. With an illumination of 1000 Lumens| the T10 / T15 LED will turn night into day.

PLUG AND PLAY.

For those of us that don’t want to mount auxiliary reverse lights| our high-power T10 / T15 LED is the ultimate plug-and-play solution.

UNMATCHED EFFICIENCY.

A typical halogen bulb usually has an efficiency of 18 Lumens per watt of input power| as compared to an astonishing 76 Lumens per watt of input power four LED upgrades| which represents a 4.2 x increase in brightness| and less overall power consumption.

THE NITTY GRITTY.

Let’s face it the factory-fitted halogen reverse bulbs just don’t cut it| not even close.

For those of us that don’t want to mount auxiliary reverse lights| our high-power T20 LED is the ultimate plug-and-play solution.

A typical halogen bulb usually has an efficiency of 18 Lumens per watt of input power| as compared to an astonishing 76 Lumens per watt of input power four LED upgrades| which represents a 4.2 x increase in brightness| and less overall power consumption.

Our high brightness reverse upgrades have built-in error cancellation making them compatible with any CANBUS application.

The connectors plug straight into the vehicle's factory wiring. The rubber grommet fits any hole size between 23mm and 29mm

Due to the high level of brightness| we recommend that these only be used for reverse.

Sold as pairs.

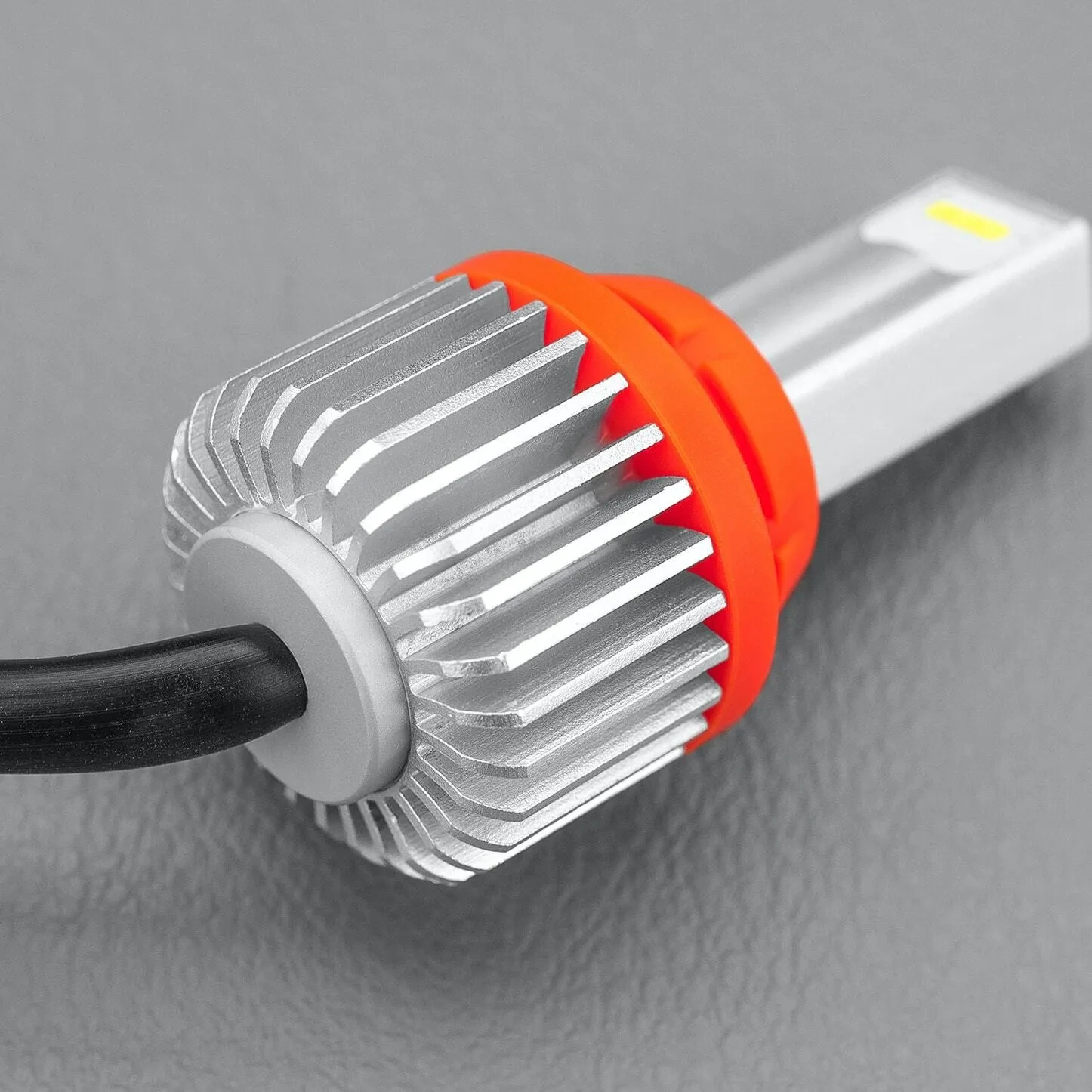

TECH SPECS

HOUSING MATERIAL Aluminum
LED 9 X SEOUL CSP
LUMEN ON HIGH 1|000 LM ± 40 LM
LUMEN ON LOW  200 LM ±  10 LM
POWER 1.0a @ 13.6v
COMPATIBLE VOLTAGE DC 12v and 24v
LIFESPAN 30|000 Hours
CONNECTOR TYPE T20 7443 & 7440
OPERATING TEMP -40°c to + 80°c
CERTIFICATION CE| ROHS
CCT 5800K



WHAT'S INCLUDED

  • 2 x STEDI T20 Wedge LED Lights



SKU LEDCONV-T20-HP-7443
Brand STEDI
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
