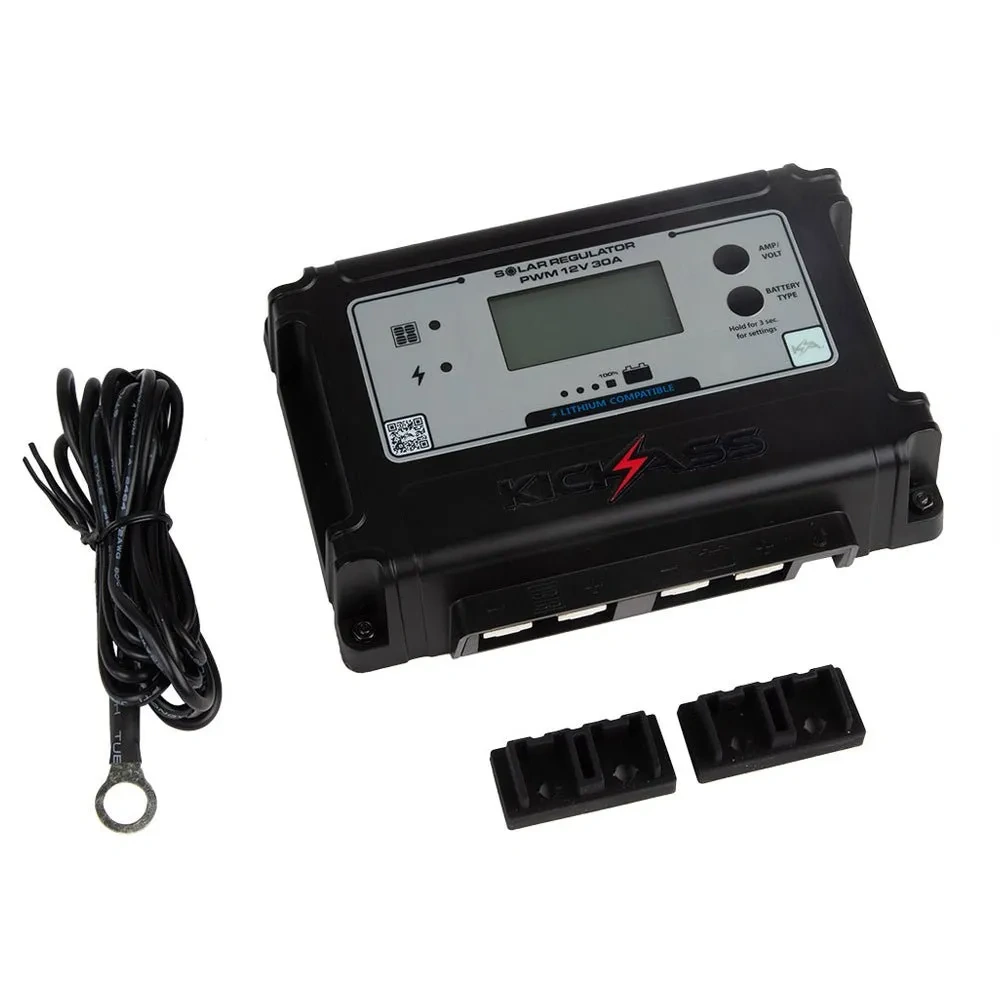

Get maximum charge from your solar. Our 30A PWM Solar Controller will efficiently and safely supply the correct charge to your auxiliary batteries. Perfect with our KickAss Electric Blanket. Automatic 5 Stage Smart Charging Compatible With Multiple Battery Chemistries Plug & Play Charging Lightweight LCD Display Description KickAss 12V 30A PWM Solar Controller Feature Overview Automatic 5 Stage Smart Charging Advanced algorithms enhance the overall charging performance of the 12V PWM Solar Controller. The charging cycle includes a float stage that automatically restarts once the battery drops below the required voltage. Anderson Style Connectors for Plug & Play (Optional Extra) Don't let a dodgy connection ruin your weekend away. The Anderson style connectors provide a secure| solid connection that delivers uncompromising charge. Lightweight & Portable Weighing only 40 grams| the KickAss 30A PWM is an ultralight solar controller perfect for pairing with the portable 160W Solar Blanket. Ideal for anyone needing a lightweight| portable solution for their 12V solar setup. LCD Display for Solar Input Monitoring The crystal-clear display allows you to easily view charge status| battery voltage| overall charged capacity| battery type| charge percentage| battery temperature| and fault codes. Lithium Activation Mode If your lithium battery drops below the safety voltage parameters of the BMS| the lithium activation mode will trigger| causing the PWM controller to charge the battery until it reaches the cut-in voltage and resumes normal charging cycles automatically. Multi-Chemistry Battery Compatibility Compatible with AGM| Gel| Sealed Lead Acid| Wet| Lead Crystal| Li-Ion Series| and LiFePO4 batteries. Perfect for charging various battery types including starter| deep cycle| marine| powersports| and more. Battery Temperature Sensor If a fault occurs with your battery| the temperature probe senses overheating and limits the current output to prevent overcharging. IP65 Dust & Water Resistant Protected against dust and water| featuring dust covers for the terminals when not in use. Note: This unit is not waterproof and should not be permanently mounted outdoors. Specifications Electrical Parameters Rated solar panel amps 30 Max AMP Normal input Solar cell array voltage 15–22 VDC Max. solar cell array voltage (output has no load) 25 Max VDC The controller lowest operating voltage at solar or battery side 8 Min VDC Standby current consumption at night 5 Max mA Maximum voltage drop - Solar panel to battery 0.25 Max VDC Charging Characteristics Minimum battery start charging voltage 3 Min VDC Soft start charging voltage 3–10 +/- 0.2 VDC Soft start charging current (50% PWM duty) Up to 15/20 AMP Bulk charge By the maximum rated current Bulk charge level1 for Lead Crystal battery By 100% maximum rated current charge up to 14.4V from 14.4V Absorption charging voltage at 25°C - Lead Crystal battery 14.7 +/- 0.2 VDC Absorption charging voltage at 25°C - Gel type battery 14.1 +/- 0.2 VDC Absorption charging voltage at 25°C - AGM type battery (default) 14.4 +/- 0.2 VDC Absorption charging voltage at 25°C - WET type battery 14.7 +/- 0.2 VDC Absorption charging voltage at 25°C - Calcium type battery 14.9 +/- 0.2 VDC Absorption charging voltage at 25°C - LTO battery 14.0 +/- 0.2 VDC Absorption charging voltage at 25°C - LFP battery 14.5 +/- 0.2 VDC Absorption charging voltage at 25°C - Li-ion battery 12.6 +/- 0.2 VDC Absorption transits to Equalizing or Float condition: Charging current drops to 1.5 +/- 0.1 AMP Absorption timer timeout 4 Hour Equalization charging active Only for WET or Calcium battery Battery voltage discharged to less than 10 +/- 0.2 VDC Automatic equalizing charging periodical 28 Day Equalization charging voltage at 25°C 15.5 +/- 0.2 VDC Equalization charging timer timeout 2 Hour Float voltage (for Crystal| GEL| WET| Calcium| AGM battery) at 25°C 13.8 +/- 0.2 VDC Restart voltage for LTO battery 13.2 +/- 0.2 VDC Restart voltage for LFP battery 13.4 +/- 0.2 VDC Restart voltage for Li-ion battery 12.0 +/- 0.2 VDC Voltage control accuracy +/- 1% Battery temperature compensation coefficient -24 mV/°C Protection Against reverse polarity or short circuit at panel or battery Yes Over temperature protection during charging 65 °C Electrical Connections Input output terminal M5 Terminal Screw / Anderson style Physical Parameters Controller material Plastic| Standard ABS Power terminal maximum stranded wire size #6 AWG stranded - 16 mm² Power terminal torque Up to 17 in-lb (0.2N-m) Mounting Vertical wall mounting IP grade IP65 Net weight Approx. 300g Environmental Characteristics Operating temperature -25 ~ 50°C / -13 ~ 122°F Storage temperature -40 ~ 85°C / -40 ~ 185°F Operating humidity range 100% no condensation
