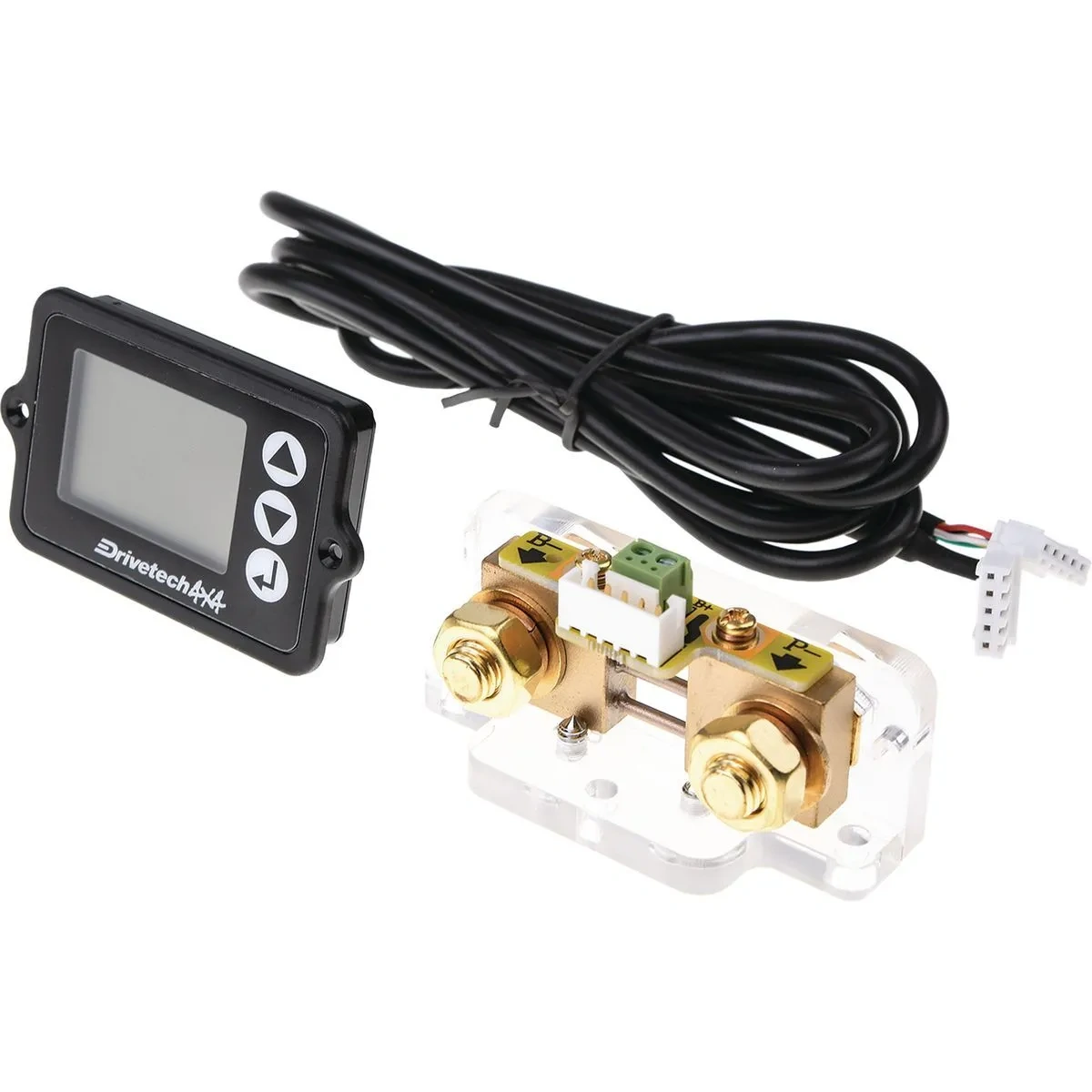

Drivetech 12V 150A Digital Battery Monitor System TDR17012 DT-17012

Drivetech helps take you places you’ve never been before| making adventure more affordable and accessible for 4WD enthusiasts. Designed for the working adventurer| Drivetech products have been tested and developed to handle anything you can throw at them without breaking the bank.

The Drivetech Battery Monitor is an easy to use battery monitor that shows monitor time to empty| battery percentage| current draw| current inwards| and wattage usage. This 12V battery monitor is sophisticated and is designed to work with most 12 Volt Gel| Lead Acid| Lithium| Lithium Ion phosphate and Calcium batteries

Operating Voltage: 8 – 60VDC
Working Power: 8 – 10mA
Standby Power Consumption: 0.50 – 0.8mA
Backlit Light Current: 40 – 50mA
Battery Capacity: 0.1 – 590Ah
Built-in Current: 5-10A
Shunt Opertaing Current: 150A
Outside Unit Diameter: 60 x 40 x 10mm
Display Window Size: 32 x 23mm
External Dimensions of Shunt: 23 x 18 x 5mm

Part number: TDR17012 DT-17012
