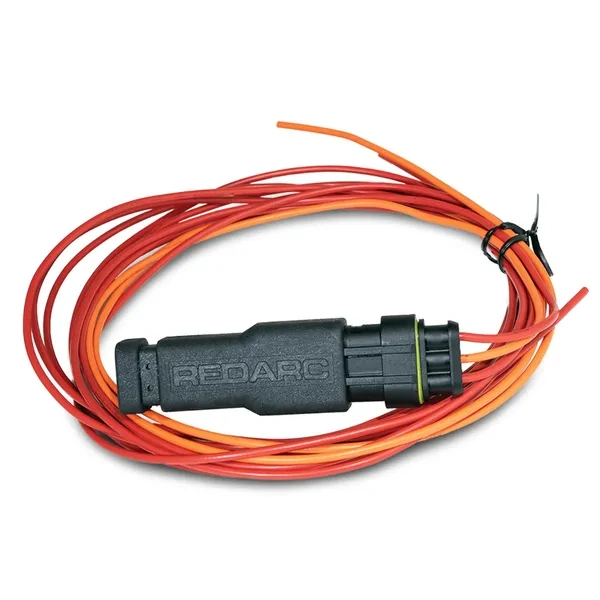

The EPDK-001 has been designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ‘back-feed’ of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly| the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used.

It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 85°C.

Features

• General purpose diode
• Encapsulated – suitablefor external use – with sealed connections
• 7a continuous current rating (at 12v or 24v)
• Wide operating temperature range (up to 85oc ambient)
• 3-wire configuration (prewired for circuit addition)

Specifications

• Rating: 7a (12v/24v)
• Packaging dimensions: 150x200mm
• Weight (g): 77
• Wiring supplied with 500mm wires and mating connector
